- Place of Origin: jinan
- Brand Name: naike

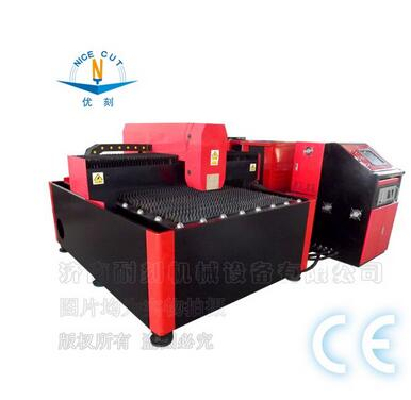

- Model Number: NC-J1212YAG
Laser working medium: ND:YAG
Laser power: 600W
Applicable material: Metal
Machining range: 1200*1200mm
Cutting thickness: 8mm
Cutting speed: less than 6m/min
Laser wavelength: 1064nm
Positioning accuracy: 0.03mm/m
Repeated positioning accuracy: / - 0.02mm/m
Minimum cut line width: 0.15mm
Equipment power: 40KW
Control system: motion control card PC
Control software: Bai Chu CypOne
Supported formats: Ai, Plt, Dxf, Gbx, Nc, etc.
Cooling: water cooling
Power demand: three phase 380V/50Hz/20KVA
Weight of the whole machine: 2000KG
Overall size (L * w * h): 3500*1800*1600mm
Do not need to die, can finish processing all kinds of complex structure, only drawing in the computer, save processing time and cost; the control system is stable and reliable, user-friendly design and convenient operation; the use cost is only similar carbon dioxide laser laser cutting machine 1/8, the maintenance costs for similar carbon dioxide laser cutting machine 1/10; high cutting efficiency. Suitable for sheet metal cutting, high precision, small cutting slot and the edge of good quality; YAG laser using self-developed and servo system, dust-free assembly process, Longmen high damping type machine, servo motor, improve the stability and reliability.
